Commercial Insect Panel Curtain
Our commercial insect panel curtain is a durable screening solution designed for busy doorways and high-traffic areas. Heavy-duty weighted mesh panels help reduce the entry of flying insects while still allowing airflow and easy access through the opening.
The PVC-coated woven polyester panels hang from a stainless steel rail system and are available in grey or black commercial-grade mesh. The curtain can be fitted internally or externally and is suitable for either face fit or reveal fit installation.
Why Choose This Commercial Insect Panel Curtain?

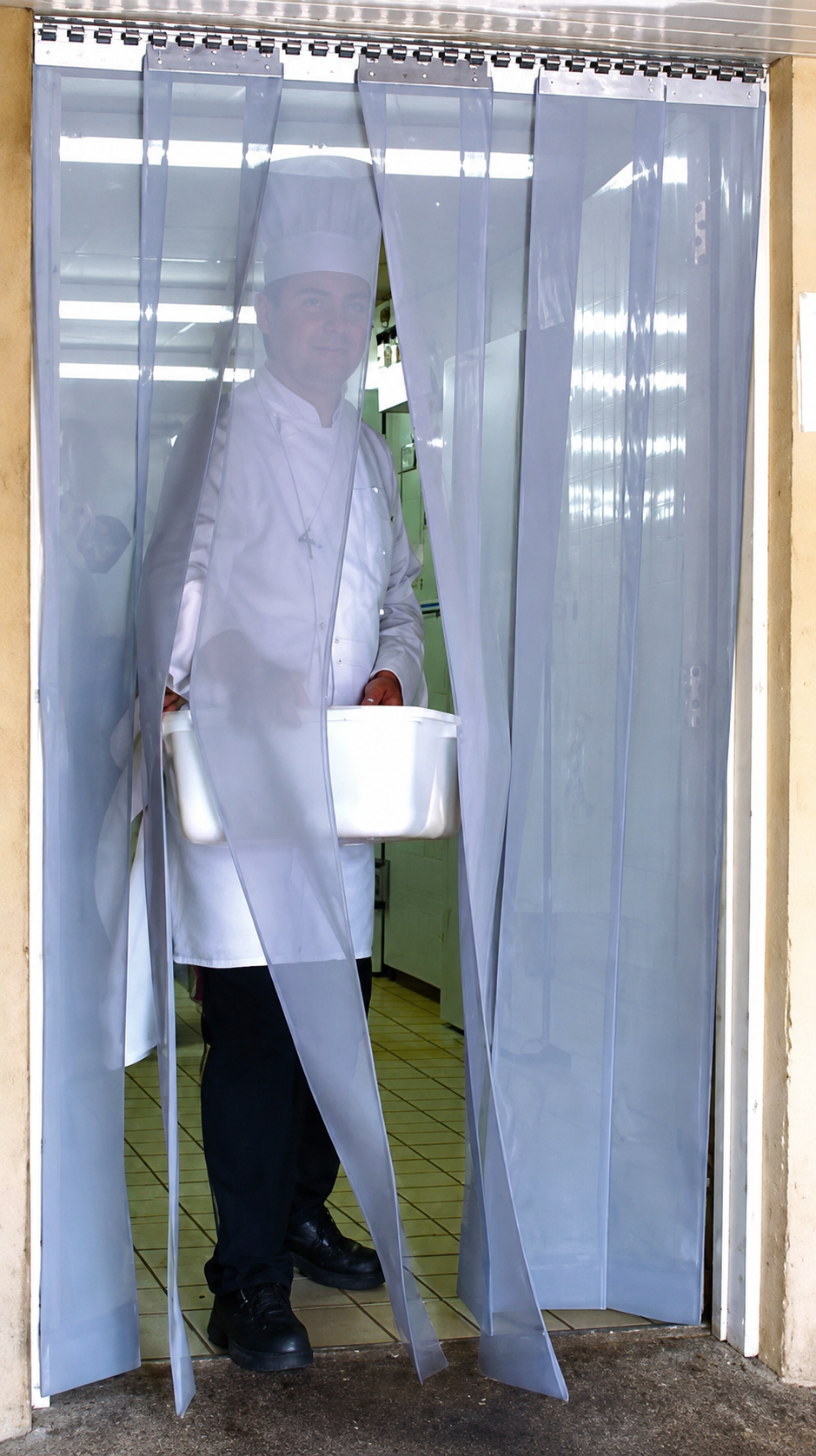

The weighted mesh panels part easily as you walk through before falling back into position, making the curtain particularly suitable for commercial kitchens, warehouses, service doors and fire exits where regular access is required.
Each panel can be removed individually for cleaning or replacement, making the system straightforward to maintain in busy commercial environments. The stainless steel hanging rail also provides a durable fixing system suitable for regular everyday use.
Commercial insect screening can also support wider food hygiene and pest-prevention measures. GOV.UK guidance for food businesses states that openings to the outside should be fitted with insect-proof screens where appropriate, helping reduce the risk of pests entering food preparation areas.
Screen Options
Made to Measure
Supplied ready-made to your specified measurements for straightforward installation.
DIY Kit
Supplied with the rail and mesh panels ready to assemble and cut to size on site.
Panel Table
Below is a table showing how many panels you will get, depending on the width of your rail.
| 984mm | 1230mm | 1517mm | 1681mm | 1845mm | 2009mm | 2214mm | |
| 2400mm | 6 panels | 8 panels | 9 panels | 10 panels | 11 panels | 12 panels | 14 panels |
Product Details

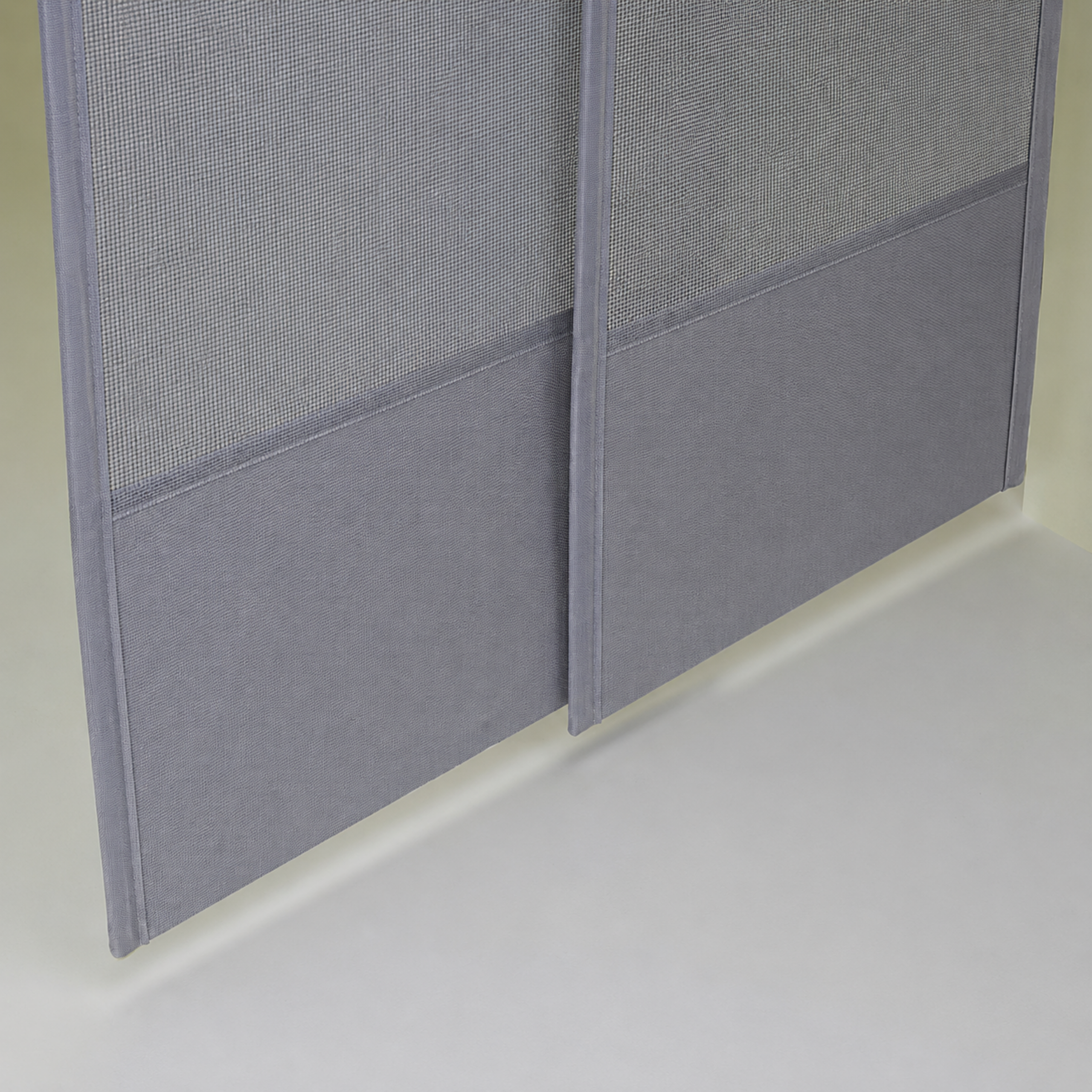

- PVC-coated woven polyester mesh panels with weighted hems
- Stainless steel hanging rail system
- Grey or black commercial-grade mesh
- Suitable for internal or external fitting
- Face fit or reveal fit installation
- Screw-fix installation only
- Panels can be individually removed for cleaning or replacement
- Made-to-measure and DIY kit options available
Before You Order
Please make sure there is sufficient fixing space for the stainless steel rail and that the mesh panels can hang freely without obstruction.
The curtain should clear the floor or threshold slightly to allow the panels to move smoothly.
All made-to-measure curtains are manufactured to the dimensions you provide, with a tolerance of ±2mm. We do not make allowances or deductions on your behalf, so please measure carefully and double-check your dimensions before ordering.
Measuring Your Commercial Insect Panel Curtain

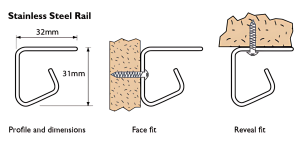

Face Fit
Step 1: Measure the Width
Measure the aperture width, including any bevelled edges, and add a minimum overlap of 25mm on each side.
Width = aperture width + minimum 50mm
Step 2: Measure the Height
Measure the height of the aperture, add 31mm for the rail and then deduct 10mm to provide floor clearance.
Height = aperture height + 21mm
Reveal Fit
Step 1: Measure the Width
Measure the aperture width, including any bevelled edges, and deduct 4mm for clearance.
Width = aperture width – 4mm
Step 2: Measure the Height
Measure the height of the aperture and deduct 10mm for floor clearance.
Height = aperture height – 10mm
Important Rail Information

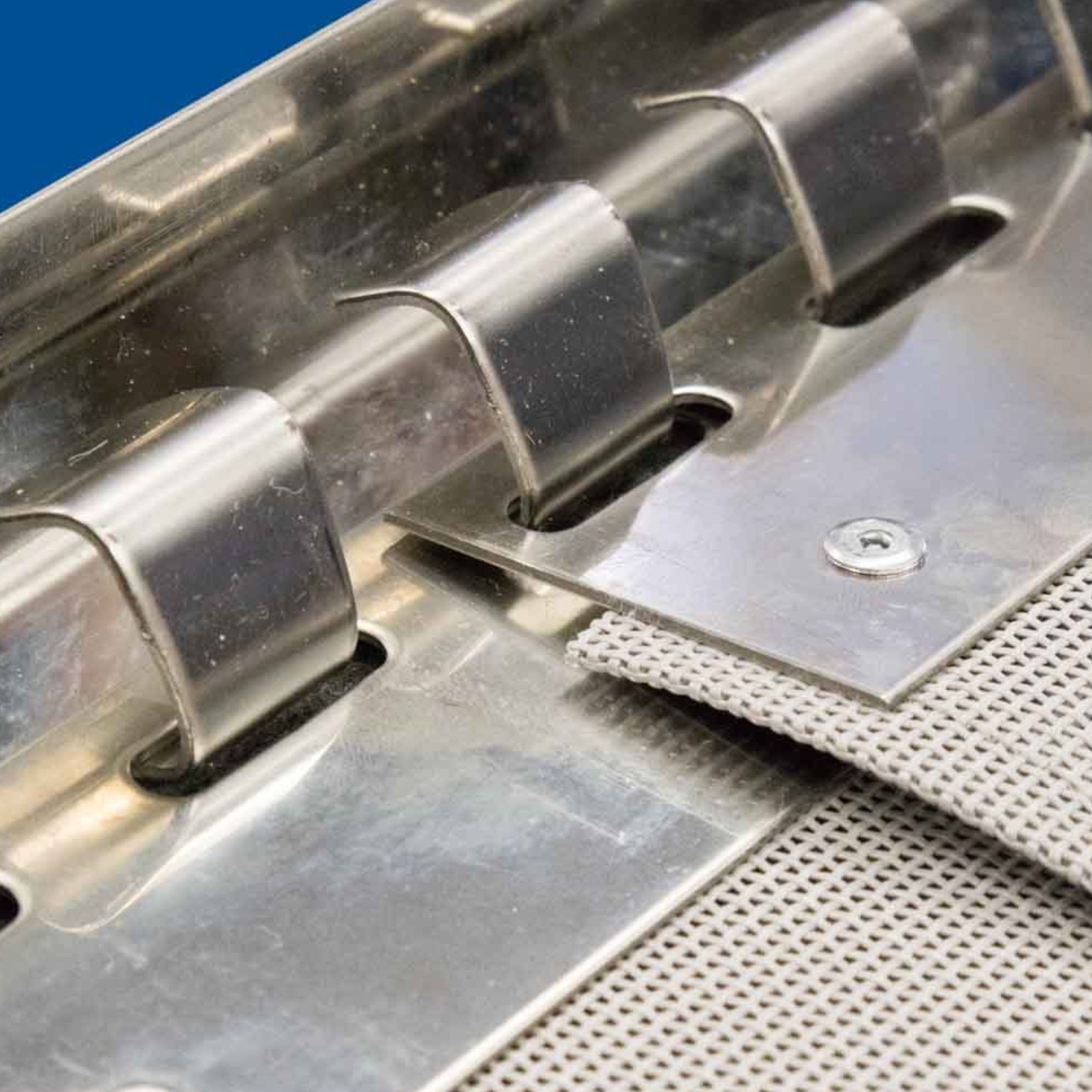

The stainless steel hooks are positioned at 41mm intervals, which means the rail can only be cut between the hook centres.
If we cannot cut the rail to the exact size ordered, it will be supplied to the next largest complete hook spacing. If required, the rail can then be trimmed further on site using a hacksaw.
Please read our Commercial Insect Panel Curtain measuring instructions carefully before ordering.
If you are unsure about measuring, fitting or whether this curtain is suitable for your doorway, please contact us before ordering and we will be happy to help.
