S700 Features

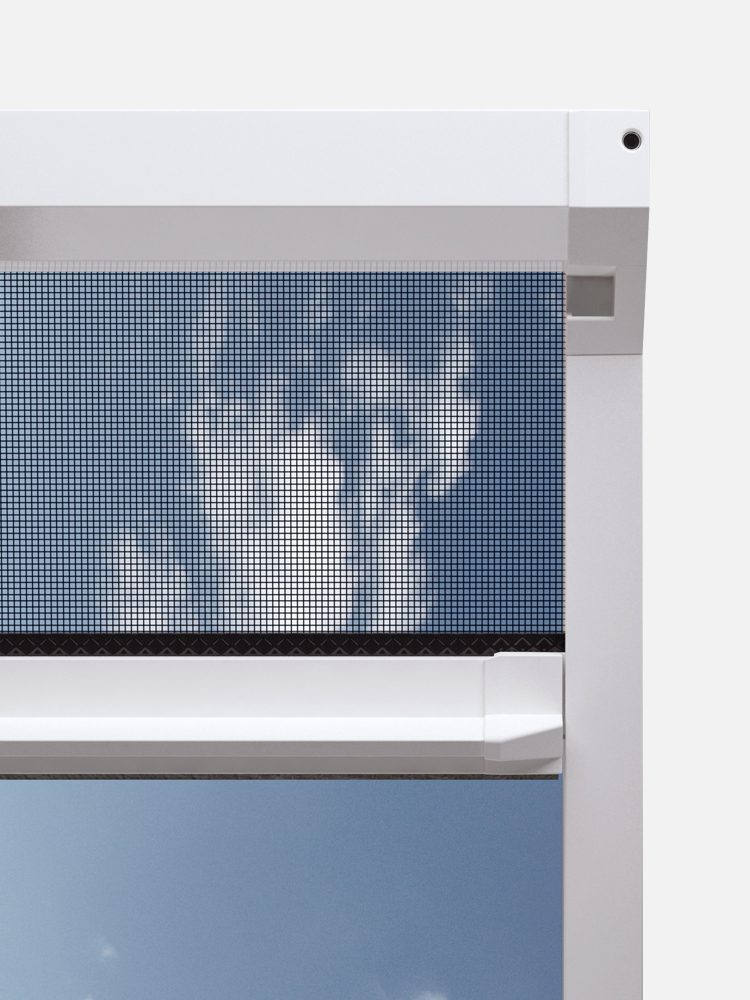

This roller window screen is top mounted with discreet slimline tracks that have brush pile inside for further protection. Check out the details below for more information.
The maximum size for this screen is 1530mm wide x 1500mm high. The minimum width is 530mm.
Measuring
Face Fit
The width of the cartridge is the critical measurement – it cannot be changed after it has been made. We manufacture to the sizes given to us, subject to +/- 2mm manufacturing tolerance. Please ensure you have read our measuring instructions carefully and made any deductions required.
Measure the width of the aperture plus any bevelled edges on the window frame. Add 25mm of flat surface on each side (50mm total) to fit the tracks.
Measure the height of the aperture plus any bevelled edges on the window frame. Add 45mm flat surface at the top for the cartridge and 10mm at the bottom for the closer bar to seal against. (If fitting within a recess do not measure the full height of the recess as the closer bar needs movement to click into place – minimum 5mm)
The side tracks need to end at least 10mm past the edge of the aperture at the bottom to provide a seal. More can be added if space allows. If fitting to the wall outside the reveal we suggest you add an additional 25mm of flat surface on each side to avoid fixing too close to the edge of the reveal. We will make to the exact size you provide us, so please ensure measurements are correct.
Width: Aperture (and bevelled edges) + 50mm of flat surface.
Height: Aperture (and bevelled edges) + 55mm of flat surface
